Details
FAR & AWAY

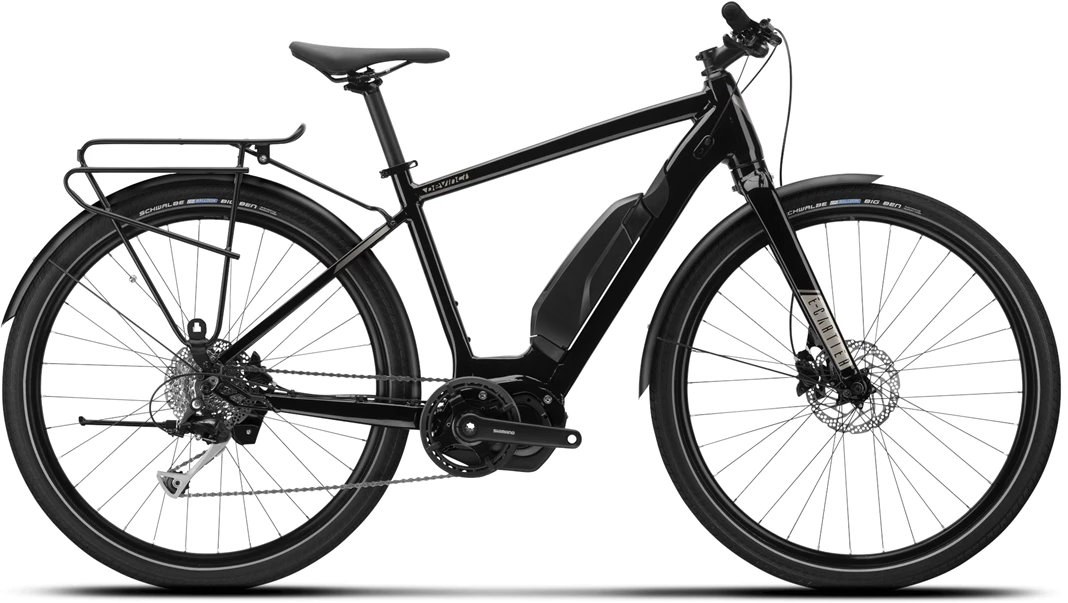

Devinci's E-Cartier makes the choice to go gas-free less of a chore. Specifically, the bike's ingenious Shimano STEPs e-motor adds power to your pedal strokes for up to 150 kilometers. And suddenly, that end-of-the-day slog no longer ends in spent legs. The rest of the bike is equally invigorating. Optimum S02 Aluminum frame geometry riffs on Devinci's MTB DNA, putting riders in an upright, short-stem position for a tall view of tripping pedestrians and swerving cabs. Maneuverability, meanwhile, is enhanced by ultra-fast 27.5 wheels. Stop on a dime thanks to all-weather disc brakes. Additional city-inspired features include safety-striped paint, 2.0 tire clearance, and both rear-rack and fender compatibility.
Size | Small | Medium | Large |
---|---|---|---|
ST (mm) | 400 | 450 | 500 |
SA | 74° | 73.5° | 73° |
HA | 71° | 71° | 71° |
REACH (mm) | 400 | 415 | 430 |
CS (mm) | 440 | 440 | 440 |
WB (mm) | 1052 | 1075 | 1099 |
BBH (mm) | 285 | 285 | 285 |
SOH (mm) | 700 | 740 | 776 |
STACK (mm) | 558 | 583 | 606 |
HT (mm) | 125 | 150 | 175 |
Size | Rider Height (cm) |
---|---|
Small | 152-171 |
Medium | 169-180 |
Large | 178-187 |
Specs
Frame | Aluminum Optimum S03 |
---|---|
Fork | Aluminum Optimum S03 |
Rims | V2 Comp | 24mm inner |
Hubs |
Front: Formula CL-25 | Sealed | Centerlock | QR 9x100mm Rear: Fma E-hub ECT-135S | Sealed | Centerlock | QR 10x135mm | SH |
Spokes | Sapim Stainless 14G w/Nylok |
Tires | Kenda KwickSeven-5 | 27.5x2 | SRC |
Crankset | Shimano STEPS E6100 |
Chainrings | Shimano STEPS SM-CRE61 | 38T |
Shifters | Shimano Alivio M3100 | 9s |
Rear Derailleur | Shimano Alivio T4000 | 9s |
Cassette/Freewheel | Shimano HG400 | 9s | 11-32T | SH |
Chain | Shimano E6070 | 9s |
Brakes | Shimano MT201/MT200 | 2 Pistons |
Rotors | Shimano RT30 | Centerlock | 160mm |
Handlebars | V2 Comp | B:31.8mm | R:10mm | W:680mm |
Tape/Grips | Soft Comfort | Single lock |
Stem | V2 Pro | B:31.8mm | 17° |
Headset | FSA Orbit | 1.5 | Zero Stack |
Seatpost | V2 Comp | 30.9mm |
Saddle | Devinci |
Pedals | Wellgo M085 |
Accessories & Extras |
Fenders: Sunny Wheel Kickstand: Kickstand Devinci Black |
Motor | Shimano STEPS E6100 | 250W | 60Nm |
Battery | Shimano STEPS E8014 | 418Wh | Lithium-ion |
Controller/Display | Shimano STEPS E5000 |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Titanium / Small | 883385207574 | FE22025211 | |
Titanium / Medium | 883385206362 | FE22025311 | 210000012055 |
Titanium / Large | 883385207581 | FE22025411 | 210000012056 |
