Details
COMMUTE WITH CONFIDENCE

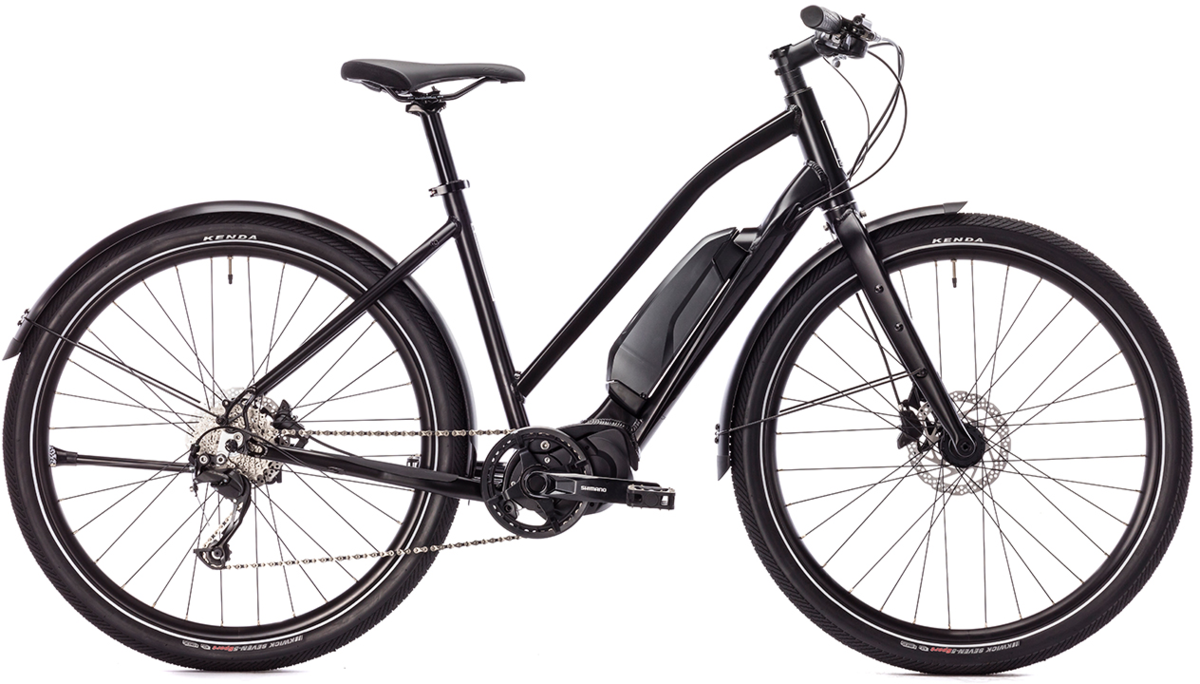

We get it—your big city commute can be a tad brutal. So why not add a little power, courtesy of our E-Big City Step-Through? The easy-access design gets you going with minimal fuss. Plus, the big city tires and full fenders handle potholes, construction zones, and all types of weather with perfect aplomb, while the Shimano E5000 motor powers you through any situation. Best of all, the E-Big City's 418Wh battery makes short work of your workday trek. It's all you need to cut the big city down to size.
- Low step-through frame for everyone to enjoy
- Lightweight 6061 aluminum fork
- Shimano 1x9 drivetrain
- Shimano MT201 hydraulic disc brakes
- Shimano STePS E-5000 motor
- Shimano E-8014 418Wh semi-integrated battery
S | M | L | |
---|---|---|---|
A. Reach | 375mm | 395mm | 415mm |
B. Stack | 575mm | 590mm | 610mm |
D. Effective Top Tube | 540mm | 570mm | 601mm |
E. Head Tube Angle | 71° | 71° | 71.5° |
F. Head Tube Length | 160mm | 180mm | 200mm |
G. Seat Tube Angle | 74° | 73.5° | 73° |
H. Seat Tube Length | 430mm | 470mm | 510mm |
J. Bottom Bracket Drop | 65mm | 60mm | 60mm |
O. Chainstay Length | 460mm | 460mm | 460mm |
Handlebar Width | 620mm | 620mm | 620mm |
Stem Length | 70mm | 70mm | 80mm |
Crank Length | 170mm | 170mm | 170mm |
Specs
Frame | Meta 30 aluminum |
---|---|
Fork | Aluminum tapered 1-1/2 to 1-1/8 in |
Rims | Weinnman U32 TL |
Hubs | Formula/Shimano |
Tires | Kenda Kwick Seven.5 27.5 x 2.4 |
Bottom Bracket | Shimano STePS E-5000 |
Crankset | Shimano STePS |
Chainrings | 38T |
Shifters | Shimano Alivio 9 |
Rear Derailleur | Shimano Alivio 3100 Shadow |
Cassette/Freewheel | Shimano 11-36 |
Chain | KMC E9 EPT |
Brakes | Shimano BR-MT201 hydraulic disc |
Brake Levers | Shimano BL-MT201 |
Handlebars | Opus Bronze 25mm rise |
Tape/Grips | Velo ergo dual density |
Stem | Opus Silver |
Headset | FSA Orbit integrated sealed |
Seatpost | Opus Silver 31.6 x 350 |
Saddle | Opus E-City |
Pedals | FPD NW-247 |
Motor | Shimano STePS motor E-5000 250W 40Nm; Max assisted speed: 32 km/h; Range: 125 km |
Battery | Shimano E-8014 418Wh 36V 11.6Ah battery |
Controller/Display | SC-E5000 Switch with integrated display |
Charger | 2A 6 hours |
* Subject to change without notice.
